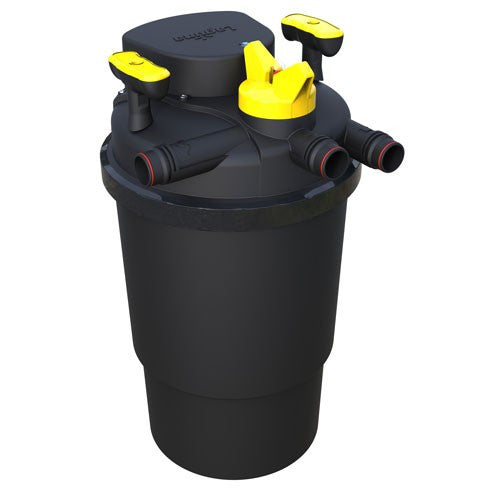

The new Laguna Pressure Flo filters include a variety of improvements to simplify the maintenance process and provide more powerful filtration. Starting with the filter handles and diverter valve, each has been re-designed and strengthened. The cleaning handles now feature an ergonomically designed grip with re-enforced brush connections. The diverter valve has been re-shaped and enlarged to accommodate an improved cleaning indicator system and makes the patented Backwash Cleaning System easier to use. Yearly UV bulb maintenance has been simplified by improvements to UVC-Head; the screws used to attach the head to the filter unit are permanently connected to the UVC head. No more misplacing or losing screws during maintenance.
Pressure-Flo features a revolutionary patented Easy Clean Backwash-Cleaning System that completely cleans the entire surface of the foam filters, and has had significant improvements so is now even easier to use than before.
Pressure-Flo is designed to work in tandem with a solids handling pump. With the filter connected to the pump, water enters the unit through a water inlet. It then passes through the mechanical filtration stage, consisting of highly durable foam filters that intercept and trap dirt and debris.
Next (for models 6000 or above), water enters a biological filtration chamber where it comes into contact with BioRock biological filter media which remove ammonia, and harbour beneficial bacteria keeping the water healthy for plants and fish.
Dirt-free water then passes along an integrated UV-C lamp, where it is exposed to ultraviolet rays that inhibit the growth of algae. Water finally returns to the pond thoroughly cleansed. This patented system is the only one of its kind. Backwash cleaning can easily and comfortably be completed in a few minutes without opening the lid. This feature ensures that the filter performs at optimal levels for many days and prolongs the time between full maintenance sessions. An easy-to-view cleaning indicator signals when it's time to perform backwash cleaning.
The unit can be installed in or above ground.
- Laguna Pressure-Flo 3000 (PT1715) up to 3000L pond with 11watt UV-C light - Laguna Pressure-Flo 6000 (PT1716) up to 6000L pond with 11watt UV-C light - Laguna Pressure-Flo 14000 (PT1718) up to 14000L pond with 24watt UV-C light
